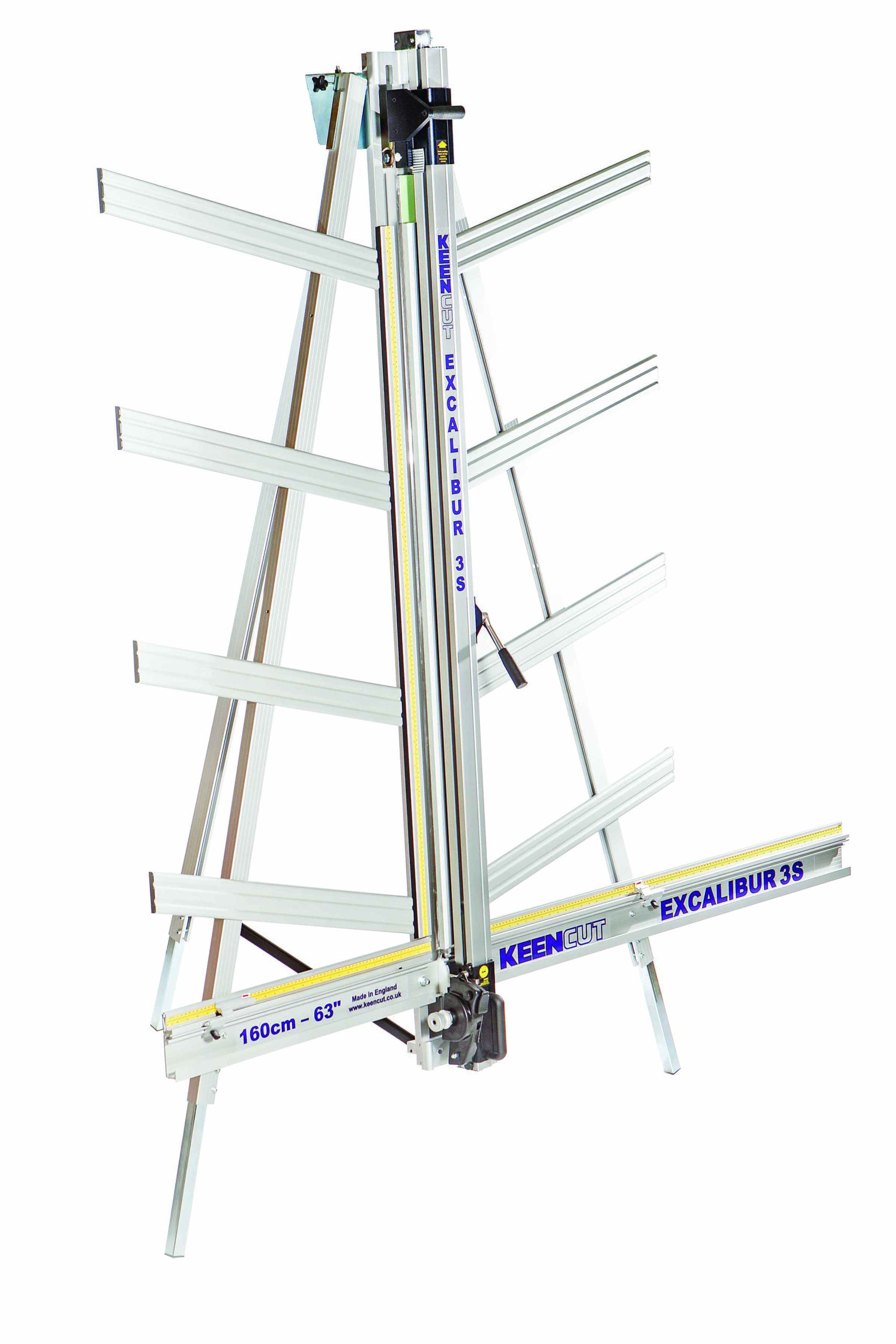

Excalibur 3S

63” Medium-duty board cutter for tough materials

The Excalibur 3S is suited to the regular cutting of light and medium-weight boards and can also cut tough materials including 3mm (3/32″) aluminum composite panels.

• Perfect cuts – A clear sightline strip acts as your guide to precise alignment. A one-piece horizontal squaring arm ensures proper positioning and rigidity.

• Reduced set-up time – Cutting and scoring tools are permanently fitted for immediate selection and use. Quick set production stops can be adjusted rapidly.

• Reduced user fatigue – Vertical design utilizes body weight to minimize the effort needed to cut tough materials.

• Space saving – To minimize the required floor space, the Excalibur 3S comes complete with wall mounting brackets. For those with limited wall space or requiring more flexibility a free-standing kit is also available.

• Versatile Cutter – The 3S will cut a wide variety of materials, The twin wheel cutter will tackle tougher materials including aluminum composite panels and MDF up to 3/32” (3mm) thick in a single pass.

• 5-year guarantee

Perfect for cutting….

Rigid Materials:

• Aluminum composite panel (DiBond) up to 3/32” (3mm)

• MDF up to 3/32” (3mm)

• Cast acrylic / Plexglas up to 3/32” (3mm) (scoring only)

Semi-rigid Materials:

• PVC Foamboard up to ½” (13mm)

• Corrugated/fluted plastic up to ½” (13mm)

• Corrugated cardboard up to ½” (13mm)

• Foam Centered board up to ½” (13mm)

• Magnetic sheet up to 1/8” (4mm)

Accessories

Medium duty utility blades:

A double ground edge, reversible blade suitable for cutting all types of material

Free standing kit:

Enables the Excalibur 3S to be installed without fixing to a wall

Easy measuring scale:

Designed to aid in measuring and aligning rigid and semi-rigid materials.
