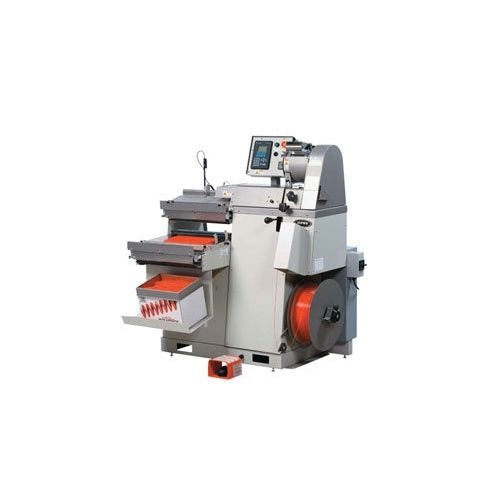

JBI CF30 Plastic Coil Forming Machine

Making plastic coil on demand is easy with the JBI CF30 Plastic Coil Forming Machine. Designed with convenience in mind, the system provides a practical way to produce only the amount of plastic coil you need for a specific job or order, saving you time, reducing your packaging costs, and increasing your profit margin at the same time. The machine can create coil with a 26 different diameters, from 6mm and up to 30mm, with the option to expand the range up to 50mm. It self-adjusts the speed ratio to optimize it for each diameter and has a convenient electronic temperature control for extra precision. Other features include interchangeable mandrel parts, digital counter for box and total order requirements, DC variable speed motors, a unique roller system, automatic oiling, and an innovative hot start feature.

Features:

* Coil forming machine for in-house spiral coil manufacturing

* Provides an easy solution to produce only the quantities you need

* A perfect choice to increase profit margin

* Compact design with a quiet operation

* Hot start feature

* 7 filament profiles to create 26 coil diameters

* Coil diameters range from 6mm to 30mm, optionally up to 50mm

* Pitch options range from 4:1 to 5:1 and 2.5:1

* Custom pitch options also available

* Coil lengths from 6.5″ to 43″

* PLC control system with a user-friendly panel

* Pre-programmed speed modes optimized for each job

* Electronic temperature control for more precision

* Digital counter per box and total orders

* Built-in mandrel storage

* Positive hexagon mandrel drive

* Interchangeable mandrel parts

* Unique roller system

* Unique spool brake design

* Heater drum with safety shields

* DC variable speed motors

* Automatic oiling system

Specifications:

• Sheet Size: 5” to 17” Binding Edge

• Books / Hour: 750+

• Book Thickness: 6mm to 30mm

• Air Required: Yes

• Power Requirements: 220 V / 1-phase / 60Hz / 20A

• Compatible with: Forming Mandrels
