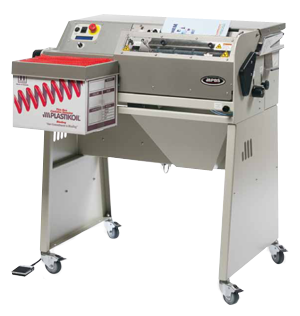

Gateway/PLASTIKOIL PBS 3000QS4 Quick Setup Automatic Coil Inserter / Finishing System – 12 inch Model

The PBS 3000 QS – Quick Setup Auto Coil Inserter / Finishing System- Automatically inserts pre-cut lengths of coil into the pre-punched book and simultaneously crimps both ends – all in a single operation! No tools are required for basic setup and changeover.

(U.S. Patents # 6,000,897 & # 7,246,982)

Comes Complete:

• Set of 15 Spine Formers

• Tool Kit

• Photo Instruction Manual & Instructional DVD

Productivity – As high as 600 books/hour

Available in .2475″ OR 4:1 OR 6 mm Pitch – For diameters from 6 mm to 20 mm

Recommended Wider 3:1 OR 2.5:1 Pitch – For larger diameters up to 30 mm

Coil Capabilities

• 6 mm through 20 mm

• Up to 30 mm in wider pitch option

Available Formats

• 12″/A4 model (Binding edges from 5″ to 12″/12.7 to 30.5 cm)

• 17″/A3 model (Binding edges from 5″ to 17″/12.7 to 43 cm)

Offcut Disposal Drawer

Foot Pedal Actuated

Benefits

• QS – Quick Setup – no tools required for basic setup and changeover.

• Vertical book placement can accommodate tabs or wider covers

• Consistent simultaneous crimping of both coil ends.

• Low maintenance design – No need for expensive service contracts.

• Mounted on casters for easy movement.

• Can be interlined with the PLASTIKOIL® New Concept Former for in-line coil manufacturing and automated insertion.
