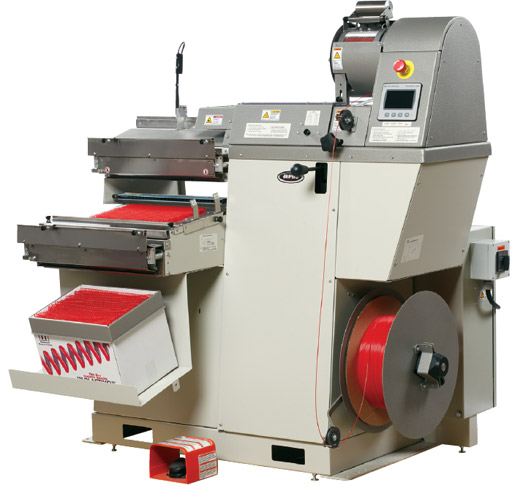

Gateway/PLASTIKOIL NCF6 Concept Former For In-House Coil Manufacturing

• Coil Diameter Capabilities – 6 mm to 30 mm with options up to 50 mm

• Multiple Pitch options – .2475″ / 4:1 / 6 mm / 5:1 / 3:1 / 2.5:1

• Custom pitches also available

• Min / Max lengths – 6.5″ to 18″ (16 – 46 cm)

• Optional slide-in extension table – for lengths up to 43″ (109 cm)

• An enhanced state of the art PLC Control system

• Color Touchscreen with a very User Friendly Interface – making set up

and changeovers even easier

• Pre-programmed temperature and machine speed values for each coil

size – Optimized for MAXIMUM productivity

• Enhanced system status monitoring (watchdog features) complete with

fault log to aid with service and maintenance

• An electrical system complete with breakers. No replacement fuses needed.

• 3 phase AC motors and variable frequency drives.

• Empty Spool Detection system – allows for easier and quicker spool changes.

• Improved ergonomics with the Control Touchscreen and E-stop now on the front of the machine for easier operator access.

• Easy mandrel changeover

• Positive Hexagon Mandrel Drive

• Cost effective IMC (Interchangeable Mandrel Components)

• Unique Spool Brake design

• Safety shields on the heater drum

• Air cylinder coil eject

• Automatic Oiling System

• Small footprint

• Smooth, quiet, simple operation

• Self-reliant / Minimal operator supervision

• Hot Start option – Stop / Start with zero waste

• Optional packaging systems

• Interline capabilities with the PBS 3000QS4 Auto Inserter(s)

• Optional packaging / single and dual interline modules pre-configured into the control system make expansion easy
