Renz – AUTOBIND 500 HS // Semi-automatic high-speed binding machine with automatic product ejection, designed for wire comb bound book, calendar, and skip bindings up to 500 mm.

RENZ

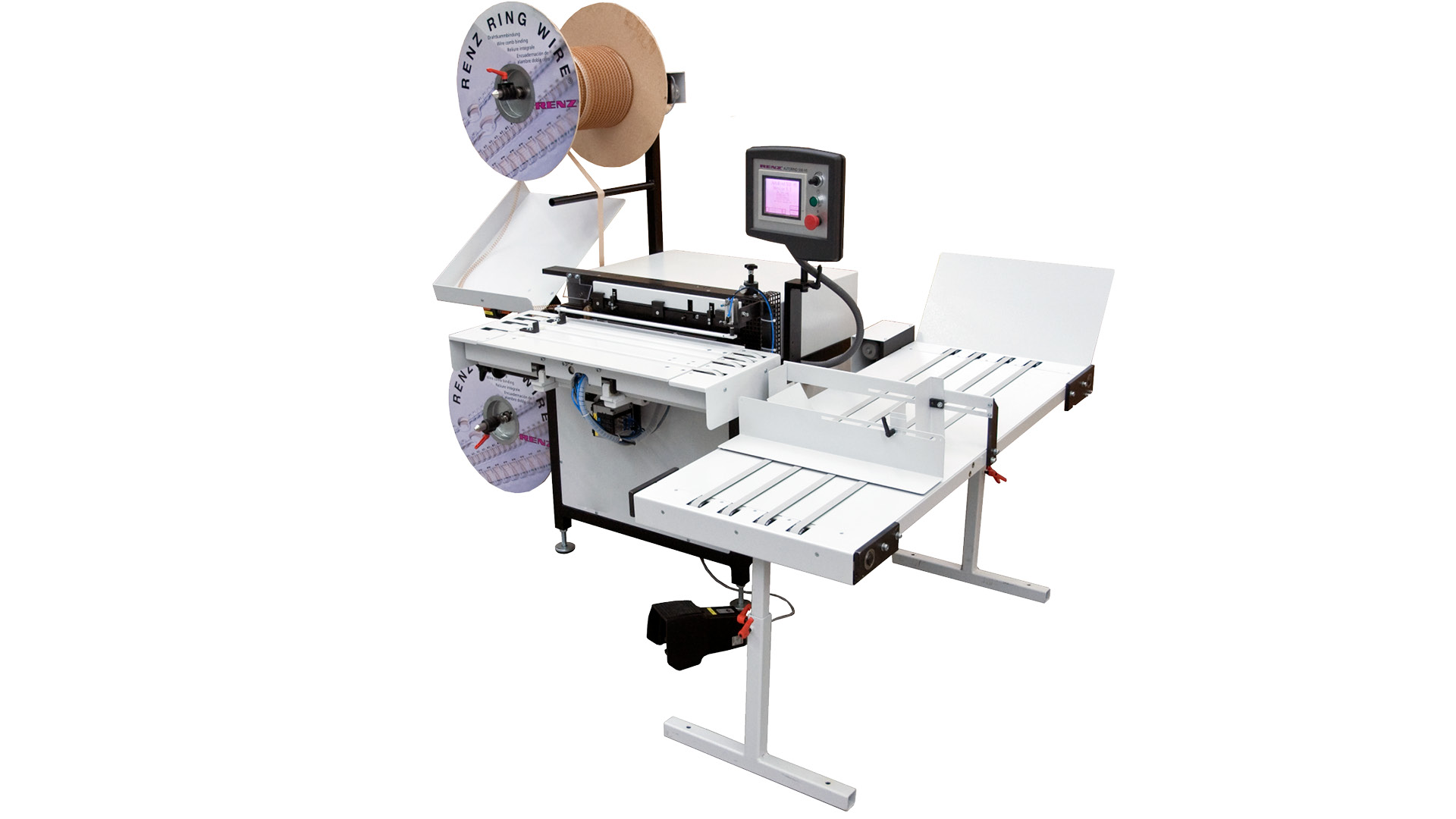

Autobind 500 HS

Productive binding with system – the RENZ Autobind 500 HS combines precision and speed.

Semi-automatic high-speed solution with automatic product ejection, optional cover turner and calendar hanger system – ideal for professional book, calendar and skip binding.

The RENZ Autobind 500 HS is an industrial, semi-automatic high-speed binding machine designed for RENZ RING WIRE® book, calendar and skip binding. With a working width of up to 500 mm, it is optimised for high-output production in demanding industrial environments. The horizontal paper feed allows for ergonomic and precise positioning of the product. An automatic closure table with integrated product clamping accurately feeds the product into the binding unit, where the wire is automatically inserted and closed. Afterwards, the product is ejected onto a shingling conveyor belt – increasing binding throughput by up to 60%. The intuitive touchscreen interface enables quick and efficient format changes. RENZ closing tools are available for each wire diameter to ensure a perfect round closure. An optional DBW 360 cover turner flips the cover and rotates every second product by 180°, enabling optimised stacking for downstream processing. Also optionally available is the KAS calendar hanger system, which forms straight shafts in standard or Euro format (KAS 300, 80–300 mm). The Autobind 500 HS is the perfect choice for professional high-volume binding operations.

Features

• Semi-automatic ring wire comb binding machine for books, calendars and skip binding

• High productivity and flexibility of different paper formats

• Automatic product ejection onto a shingle conveyor

• Touch screen assisted setup process Binds up to 230 sheets

• Horizontal paper feeding for easy product loading

• Automatic closure table

• Optional extra:

– KAS calendar hanger systems

– Side lay allow oversized products to be bound

Properties

Product type:
Semi-automatic binding machine

Field of application:
Wire comb binding, Calendar binding

Function:
electrical binding

Operation:
Foot switch

Setup / Settings:
Touchscreen, manuell

Format change:
1 min

Diameter change:
15 min

Working width:
500 mm

Min. format (w x l):
60 x 100 mm

Max. format (w x l):
500 x 500 mm

Pitch:
3:1, 2:1

Workable diameters:
Ø 1/4“ – 1 1/8“ (6,9 – 28,5 mm)

Mechanical cycles /h:
2000

Max. bound items /h:
1600

Feeding calendar hangers (optional):
KAS 300 (80 – 300 mm)

Compressed air requirement:
7,5 bar (330 – 340 l/min)

Power requirement:
230V, 1PH/N/PE, 50Hz, 800W

Power requirement (alternativ):
115V, 1PH/N/PE, 60Hz, 800W

Product size (w x h x d):
2050 x 1700 x 1960 mm

Product weight:
220,0 kg
