Renz – AUTOBIND 500 // Semi-automatic high-speed binding machine for wire comb bound book, calendar, and skip bindings up to 500 mm

RENZ

Autobind 500

Productive binding with system – the RENZ Autobind 500 combines precision and speed.

The RENZ Autobind 500 is the ideal solution for industrial book, calendar and skip binding – with automatic closure table, adjustable format control and optional calendar hanger system.

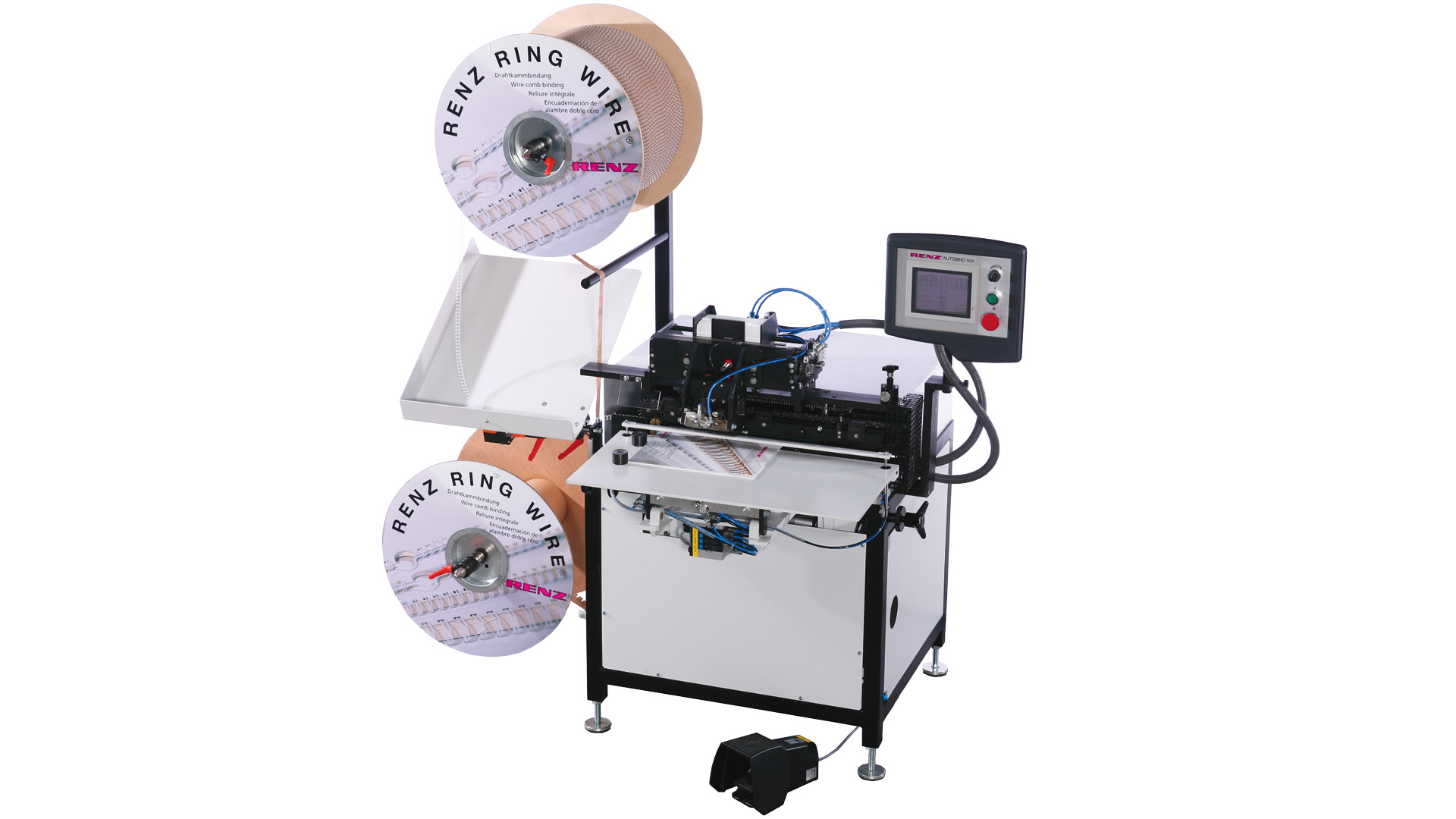

The RENZ Autobind 500 is an industrial, semi-automatic high-speed binding machine designed for processing RENZ RING WIRE® in book, calendar, and skip binding applications. With its high format flexibility and strong productivity, it is ideally suited for post-press operations involving large volumes. The horizontal paper feed supports precise and ergonomic placement of the product to be bound. The automatic closure table clamps the product securely and guides it accurately and reliably into the binding unit, where the wire element is automatically inserted and closed to perfection. The user-friendly touchscreen interface allows for fast and easy format adjustments. For every wire diameter, dedicated RENZ closing tools are available to ensure a consistently perfect round closure. Optional features such as a side lay for products with protruding edges and the KAS calendar hanger system (up to 500 mm) make the Autobind 700 an ideal solution for industrial-scale professional binding applications.

Features

• Semi-automatic ring wire comb binding machine for books, calendars and skip binding

• High productivity and flexibility of different paper formats

• Touch screen assisted setup process

• Binds up to 230 sheets

• Horizontal paper feeding for easy product loading

• Automatic closure table

• Optional extra:

– KAS calendar hanger systems

– Side lay allow oversized products to be bound

Properties

Product type:
Semi-automatic binding machine

Field of application:
Wire comb binding, Calendar binding

Function:
electrical binding

Operation:
Foot switch

Setup / Settings:
Touchscreen, manuell

Format change:
1 min

Diameter change:
15 min

Working width:
500 mm

Min. format (w x l):
60 x 100 mm

Max. format (w x l):
500 x 500 mm

Pitch:
3:1, 2:1

Workable diameters:
Ø 1/4“ – 1 1/8“ (6,9 – 28,5 mm)

Mechanical cycles /h:
2000

Max. bound items /h:
1200

Feeding calendar hangers (optional):
KAS 300 (80 – 300 mm)

Compressed air requirement:
7,5 bar (300 – 320 l/min)

Power requirement:
230V, 1PH/N/PE, 50Hz, 600W

Power requirement (alternativ):
115V, 1PH/N/PE, 60Hz, 600W

Product size (w x h x d):
1650 x 1700 x 1560 mm

Product weight:
212,0 kg
