Renz – AUTOPUNCH 360-120 | Digital // Automatic high-speed punching machine for book and calendar production. Punches up to 100,000 sheets per hour. 360 mm working width.

RENZ

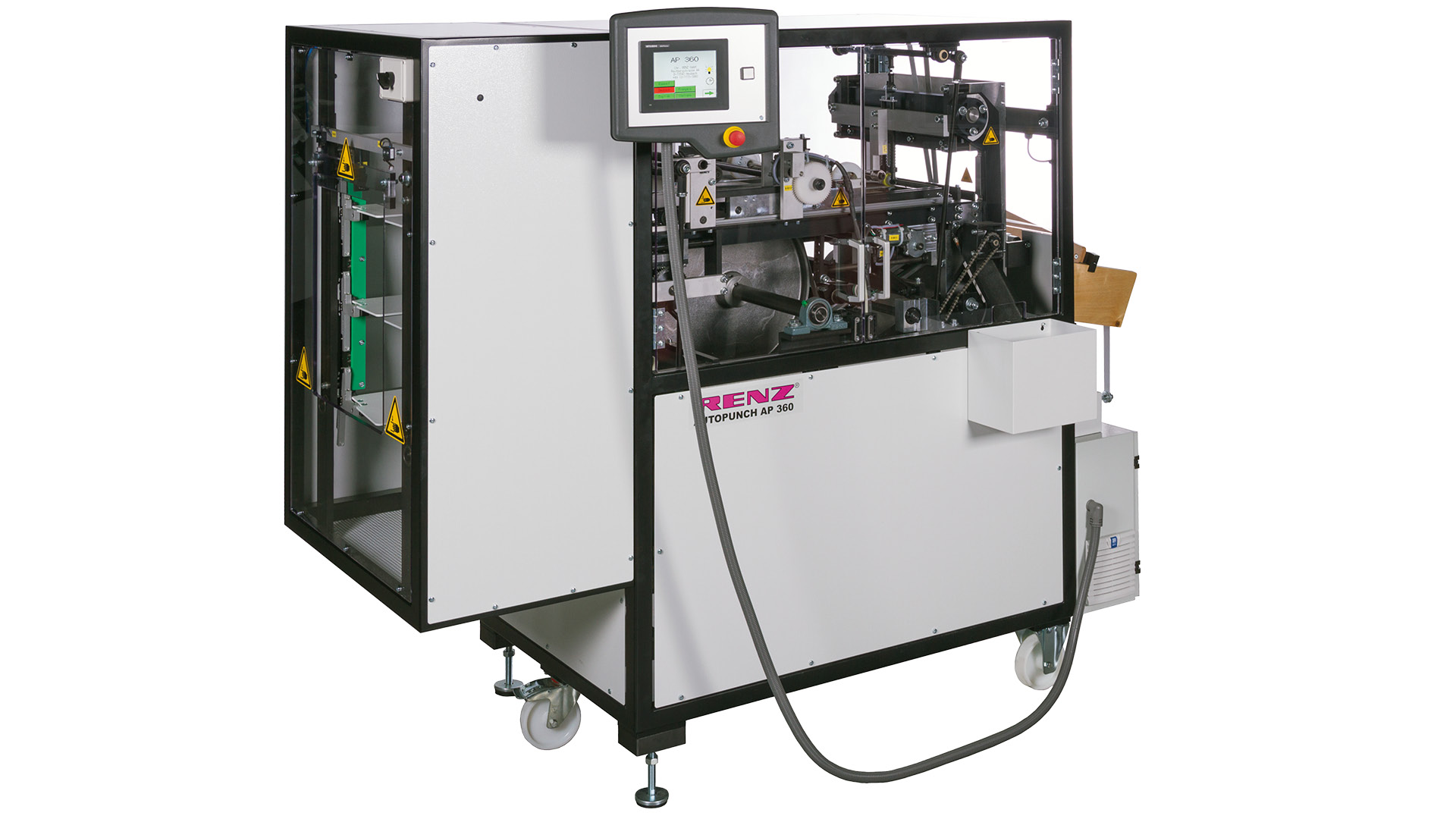

Autopunch 360-120 | Digital

Automatic High-Speed Punching Machine – the ideal solution for professional punching needs in book and calendar production.

Boost your efficiency in print finishing: The RENZ Autopunch 360-120 | Digital combines speed, reliability, and user-friendliness – delivering maximum productivity and reduced lead times.

The RENZ Autopunch 360-120 | Digital is an automatic high-speed punching machine designed for modern print finishing. It achieves up to 100,000 punches per hour with minimal operator intervention. Thanks to its intelligent paternoster feeder, two-finger paper pick-up system, and automatic turnover drum, the machine ensures a continuous, error-free punching process and perfect sheet sequencing, even with mixed material types. Setup is intuitive via a large colour touchscreen featuring 40 programmable job memories, enabling automatic format changes in seconds. Tool changes are quick and simple, taking just a few seconds, allowing flexible adaptation to wire comb binding, plastic comb binding, coil binding, and custom punching patterns. The innovative QSA (Quick Size Adjustment) technology enables the quick deactivation or activation of individual punching pins directly on the tool without removal – ideal for adjusting punch widths as needed. A variety of high-performance punching tools for all common binding types is available as optional equipment. The machine’s robust all-steel construction and low-maintenance stepper motor technology ensure high operational reliability and a long service life. An optional air blast system supports trouble-free processing of demanding materials. Thanks to automatic format adjustment and punching speeds, production bottlenecks can be effectively eliminated. Compact design allows easy integration into existing production environments. Whether for print shops, binderies, or large corporate printing centres – the RENZ Autopunch 360-120 | Digital provides an efficient, scalable solution that reduces production costs, shortens lead times, and boosts profitability. Investing in RENZ means choosing outstanding German engineering for future-proof production.

Features

• Up to 120 strokes per hour

• Automatic format adjustment via touchscreen

• Robust steel construction

• Intuitive operation with 40 programmable jobs

• Optional: QSA technology for quick tool adjustments

• Two-finger paper pick-up system for mixed materials

• Paternoster feeder for continuous operation

• Turnover drum for maintaining sheet order

• Optional: air blast system for challenging materials

• Wide range of high-performance punching tools available

Properties

Product type:
Fully automatic punching machine

Field of application:
Wire comb binding, Calendar binding, Coil binding (PVC), Spiral binding (wire), Plastic comb binding

Function:
automatic punching

Operation:
Automatic paper feed

Setup / Settings:
Touchscreen

Changing punching die:
3 min

Working width:
360 mm

Min. format (w x l):
100 x 85 mm

Max. format (w x l):
360 x 360 mm

Pitch:
5/16″ (8mm), 3:1, 2:1, 0.2475″, 0.23622″, 4:1, 5:1

Optional punching tools available:
Punching dies available in many pitches, hole patterns and designs: wire comb binding, calendar binding, plastic binding, spiral binding, tear-off perforation

Punching die type:
High-performance punching die

Selectable punch pins (QSA):
yes (depending on die)

Adjusting margin depth:
varible margin depth (on request)

Multi-part punching dies:
yes (depending on die)

Bespoke dies:
yes (on request)

Mechanical cycles /h:
7200

Max. punching thickness:
2,2 mm, 2,4 mm

Max. punched sheets p/h:
100000

Power requirement:
230V, 1PH/N/PE, 50Hz, 2,3kW

Power requirement (alternativ):
115V, 1PH/N/PE, 60Hz, 2,3kW

Product size (w x h x d):
2000 x 1600 x 1200 mm

Product weight:
680,0 kg
