Renz – DTP 340 M // Modular electric tabletop punching machine for all types of book and calendar production. Punches up to 20,000 sheets per hour. 340 mm working width.

RENZ

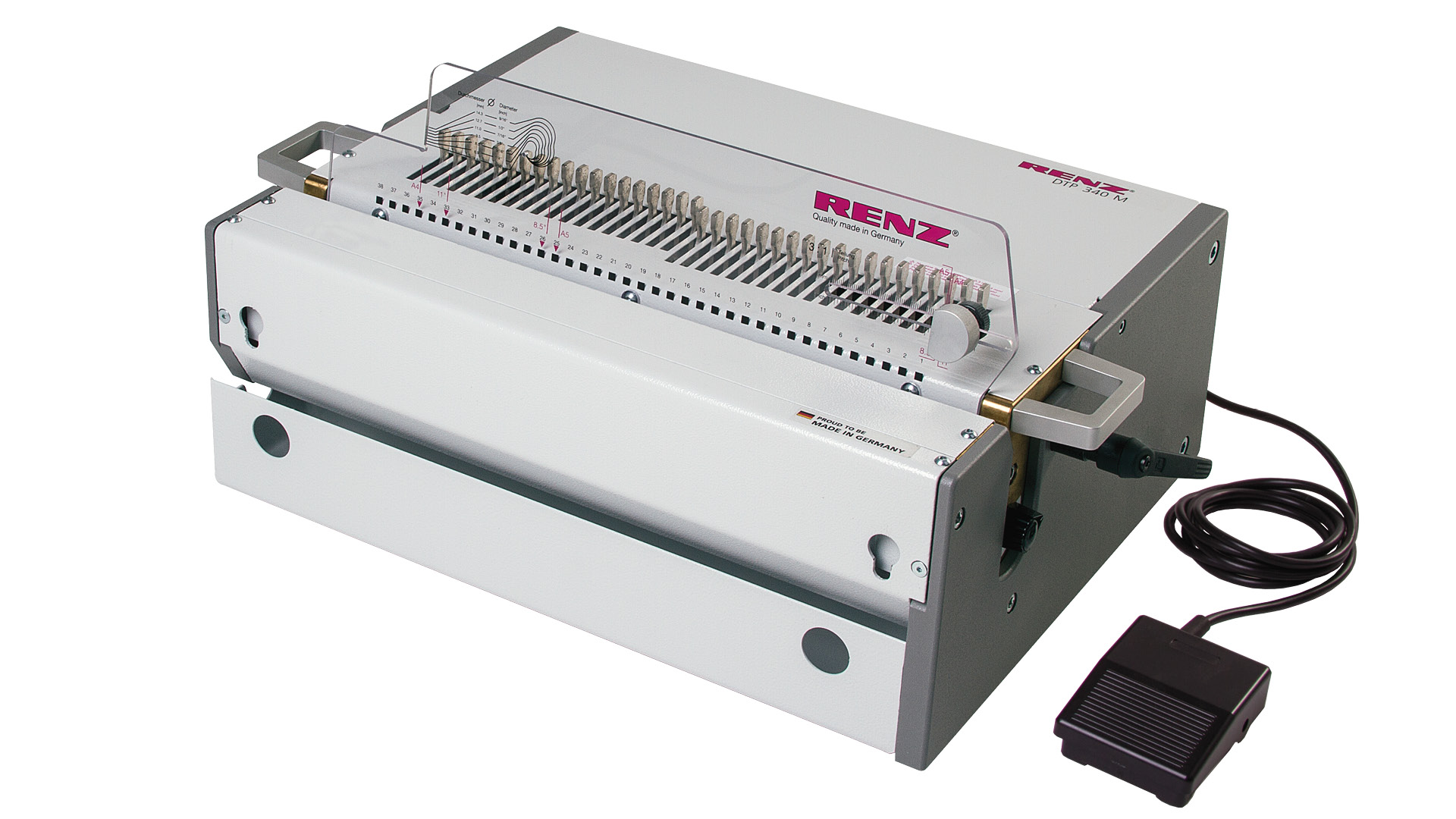

DTP 340 M

The modular solution for efficient punching and binding in every binding type.

With the RENZ DTP 340 M, you can punch and optional bind various binding types in high quality and efficiency – ideal for copy shops, offices, and digital printers.

The RENZ DTP 340 M is a professional, electrically operated tabletop punching machine with a modular design for maximum flexibility in post-processing. It was specifically developed for the demands of large offices, copy shops, and printing companies that want to efficiently implement a wide range of binding solutions. Thanks to its clever design, various optional punching tools for wire comb, plastic coil, spiral, and calendar bindings can be used and changed very quickly and without tools. With the QSA technology (Quick Size Adjustment), individual punching dies can be quickly deactivated by pulling, allowing formats and custom formats to be adjusted flexibly and efficiently. With a maximum working width of 340 mm and the ability to process up to 20,000 sheets per hour, large volumes can be punched with the utmost precision. The vertical paper feed ensures precise alignment and ergonomic working. With the option to expand with RENZ MBS binding modules, the DTP 340 M becomes a complete punching and binding solution for all common binding types. This allows the system to grow with your needs, making your post-processing even more cost-effective.

Features

• Maximum working width of 340 mm

• Optional punching dies for wire comb binding, spiral binding, plastic coil binding, and calendar binding

• Quick format change without tool removal thanks to QSA technology

• Expandable with MBS modules for a complete punching and binding solution

• High productivity with up to 20,000 punched sheets per hour

• Functional and robust construction for high demands

Properties

Product type:
Electric punching machine

Field of application:
Wire comb binding, Calendar binding, Coil binding (PVC), Spiral binding (wire), Plastic comb binding

Function:
electrical punching

Operation:
Foot switch

Setup / Settings:
manuell

Format change:
0,2 min

Changing punching die:
1 min

Working width:
340 mm

Min. format (w x l):
10 x 40 mm

Max. format (w x l):
340 x 800 mm

Pitch:
3:1, 2:1, US, 0.2475″, 0.23622″, 4:1

Optional punching tools available:
Punching dies available in many pitches, hole patterns and designs: wire comb binding, calendar binding, plastic binding, spiral binding

Punching die type:
Standard punching die

Selectable punch pins (QSA):
yes (depending on die)

Adjusting margin depth:
variable (dending on die)

Multi-part punching dies:
no

Bespoke dies:
no

Mechanical cycles /h:
1200

Max. punching thickness:
3,5 mm

Max. punched sheets p/h:
20000

Power requirement:
230V, 1PH/N/PE, 50Hz, 250W

Power requirement (alternativ):
115V, 1PH/N/PE, 60Hz, 250W

Product size (w x h x d):
490 x 250 x 360 mm

Product weight:
31,0 kg
