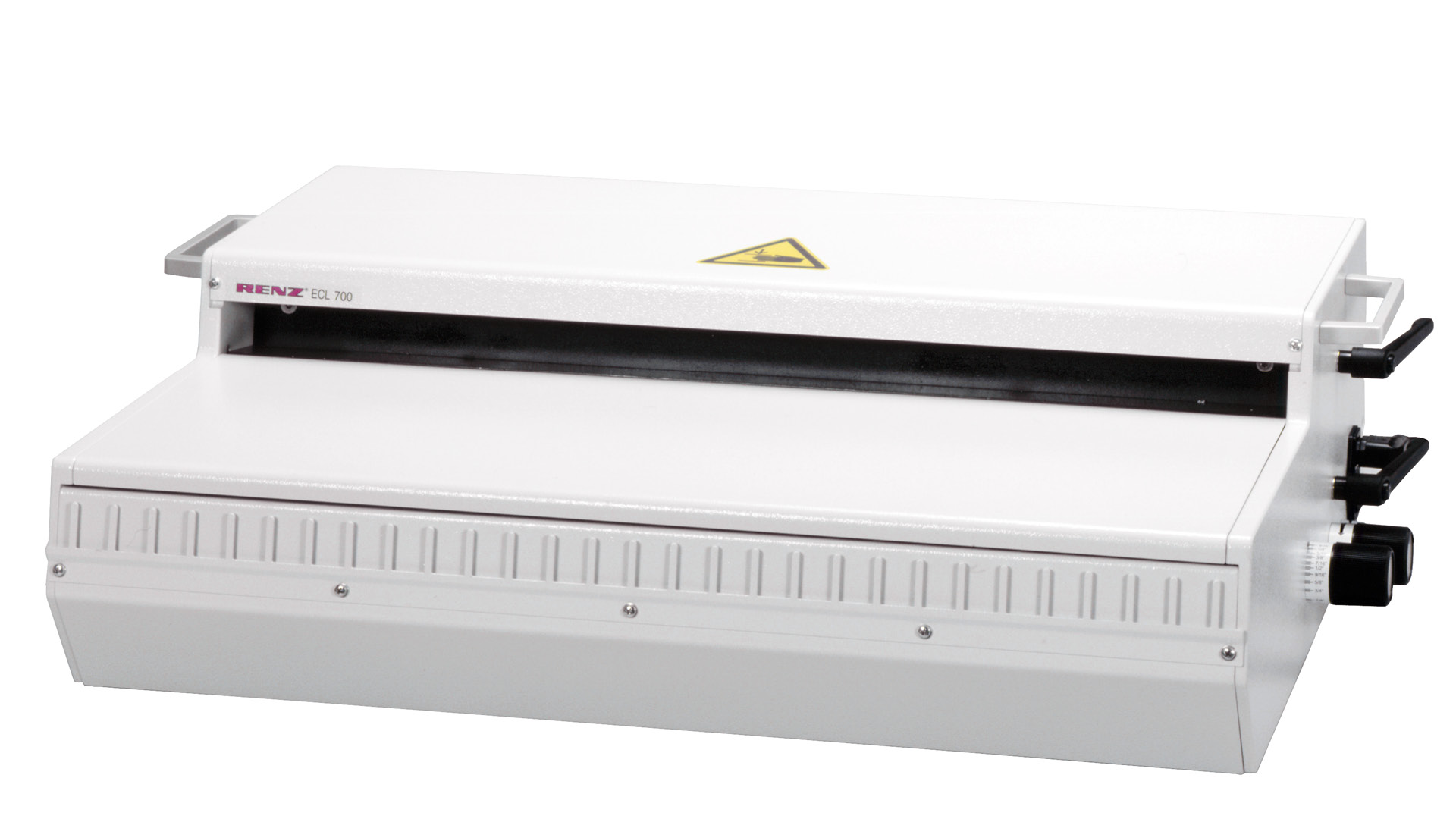

Renz – ECL 700 // Electric wire comb closing machine for 2:1 and 3:1 pitch. 700 mm working width.

RENZ

ECL 700

Electric. Simple. Efficient. Bind effortlessly up to 700 mm.

The RENZ ECL 700 is the perfect electric solution for precise, round-closed wire combs. Fast size adjustment, high safety and professional results.

The electric RENZ ECL 700 closes wire combs precisely and evenly – ideal for documents up to 700 mm in width. It is specifically designed for binding wire comb bound products – ensuring perfectly round-closed results. Ideal for finishing blocks, brochures, training materials, notebooks or calendars. With its robust construction and compact design, the ECL 700 is the ideal solution for medium to high-volume production in copy shops, digital print environments and industrial binding lines. Wire size can be adjusted in seconds via the integrated dial. The entire closing process is operated comfortably via foot pedal, and a built-in safety system protects the operator. An integrated wire hanging device and precise parallel closing adjustment guarantee clean, professional results with minimal effort.

Features

• For binding wire combs up to 1 ½″ (38 mm)

• Working width: up to 700 mm

• Binding capacity: up to 340 sheets (80 gsm)

• Perfect round closure through parallel adjustment

• Quick wire size adjustment via integrated dial

• Convenient foot pedal operation

• Built-in wire hanging device

• Automatic safety system

• Compact, durable design

Properties

Product type:
Electric binding machine

Field of application:
Wire comb binding, Calendar binding

Function:
electrical binding

Operation:
Foot switch

Setup / Settings:
manuell

Diameter change:
0,3 min

Working width:
700 mm

Min. format (w x l):
10 x 65 mm

Max. format (w x l):
700 x 600 mm

Pitch:
3:1, 2:1

Workable diameters:
Ø 1/4″ – 1 1/2″ (6,9 – 38,0 mm)

Max. binding thickness (mm):
34,0 mm

Max. binding thickness (sheets, 70-80gsm):
340

Max. bound items /h:
400

Feeding calendar hangers (optional):
Manual single feeding

Power requirement:
230V, 1PH/N/PE, 50Hz, 250W

Power requirement (alternativ):
115V, 1PH/N/PE, 60Hz, 250W

Product size (w x h x d):
850 x 230 x 530 mm

Product weight:
56,0 kg
