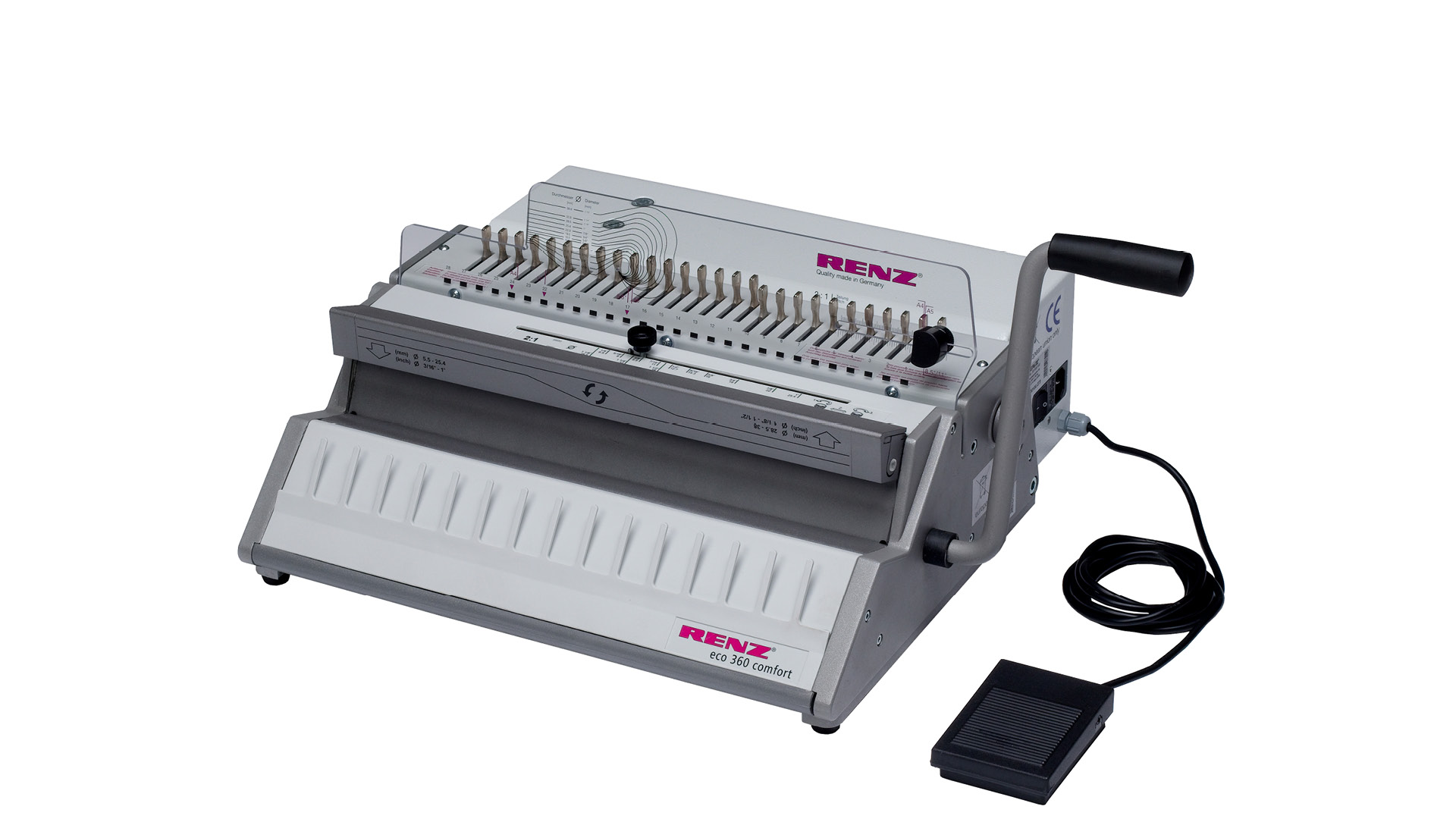

Renz – ECO 360 Comfort Plus // Electric 2:1 wire comb binding machine. 360 mm working width. Binds up to 340 sheets. QSA function for quick deactivation of punching pins.

RENZ

ECO 360 Comfort Plus

Convenient and precise – the electric wire comb binder for professional 2:1 bindings.

Electric 2:1 wire comb binding machine with foot pedal punching and manual binding up to 360 mm – for blocks, brochures, documents and calendars up to 340 sheets.

The RENZ ECO 360 Comfort Plus is an electric 2:1 wire comb binding machine for punching and binding with wire combs up to 360 mm working width – ideal for professional processing of blocks, brochures, documents and calendars in small to medium runs. Thanks to the open-ended punching and closing slot, even formats like A3 can be processed by punching and closing in two passes. The machine punches up to 25 sheets per stroke effortlessly via foot switch and binds up to 340 sheets (80 gsm) manually using an ergonomic lever. With QSA technology, individual hardened punching pins can be quickly deactivated – ideal for flexible format changes to A5, A4 or custom sizes. The punching margin is adjustable between 2 and 4.5 mm. An integrated measuring scale, parallel adjustment, and an adjustable side lay ensure precise results. With its robust construction and user-friendly operation, this machine is a reliable solution for professional wire comb binding.

Features

• Binds up to 340 sheets (80 gsm)

• Electric punching via foot switch – up to 25 sheets per stroke

• Manual binding using ergonomic closer

• 360 mm working width – A3 supported via open punching and closing slot (in two passes)

• 2:1 pitch (23 rings per A4)

• QSA technology: quickly deactivate individual hardened punching pins – ideal for A4, A5 and custom sizes

• Adjustable punching margin: 2–4.5 mm

• Diameter setting for accurate closure

• Parallel adjustment for consistent results

• Adjustable side lay and integrated measuring scale

• Durable metal housing and compact footprint

Properties

Product type:
Electric punching and binding machine

Field of application:
Wire comb binding

Function:
electrical punching, manual binding

Operation:
Foot pedal, Binding lever

Setup / Settings:
manuell

Format change:
0,2 min

Diameter change:
0,1 min

Working width:
360 mm

Min. format (w x l):
10 x 50 mm

Max. format (w x l):
360 x 500 mm

Pitch:
2:1

Hole pattern:
rectangular

Punch pattern:
5,5 x 3,5 mm

Selectable punch pins (QSA):
yes

Adjusting margin depth:
variable margin depth

Workable diameters:
Ø 1/4″ – 1 1/2″ (6,9 – 38,0 mm)

Max. binding thickness (mm):
34,0 mm

Max. binding thickness (sheets, 70-80gsm):
340

Max. punching thickness:
2,5 mm

Max. punched sheets p/h:
16000

Max. bound items /h:
250

Power requirement:
230V, 1PH/N/PE, 50Hz, 180W

Power requirement (alternativ):
115V, 1PH/N/PE, 60Hz, 180W

Product size (w x h x d):
560 x 180 x 430 mm

Product weight:
26,0 kg

Packing unit:
1
