Renz – SRW 360 Comfort Plus // Electric 3:1 wire comb binding machine. 360 mm working width. Binds up to 135 sheets. QSA function for quick deactivation of punching pins.

RENZ

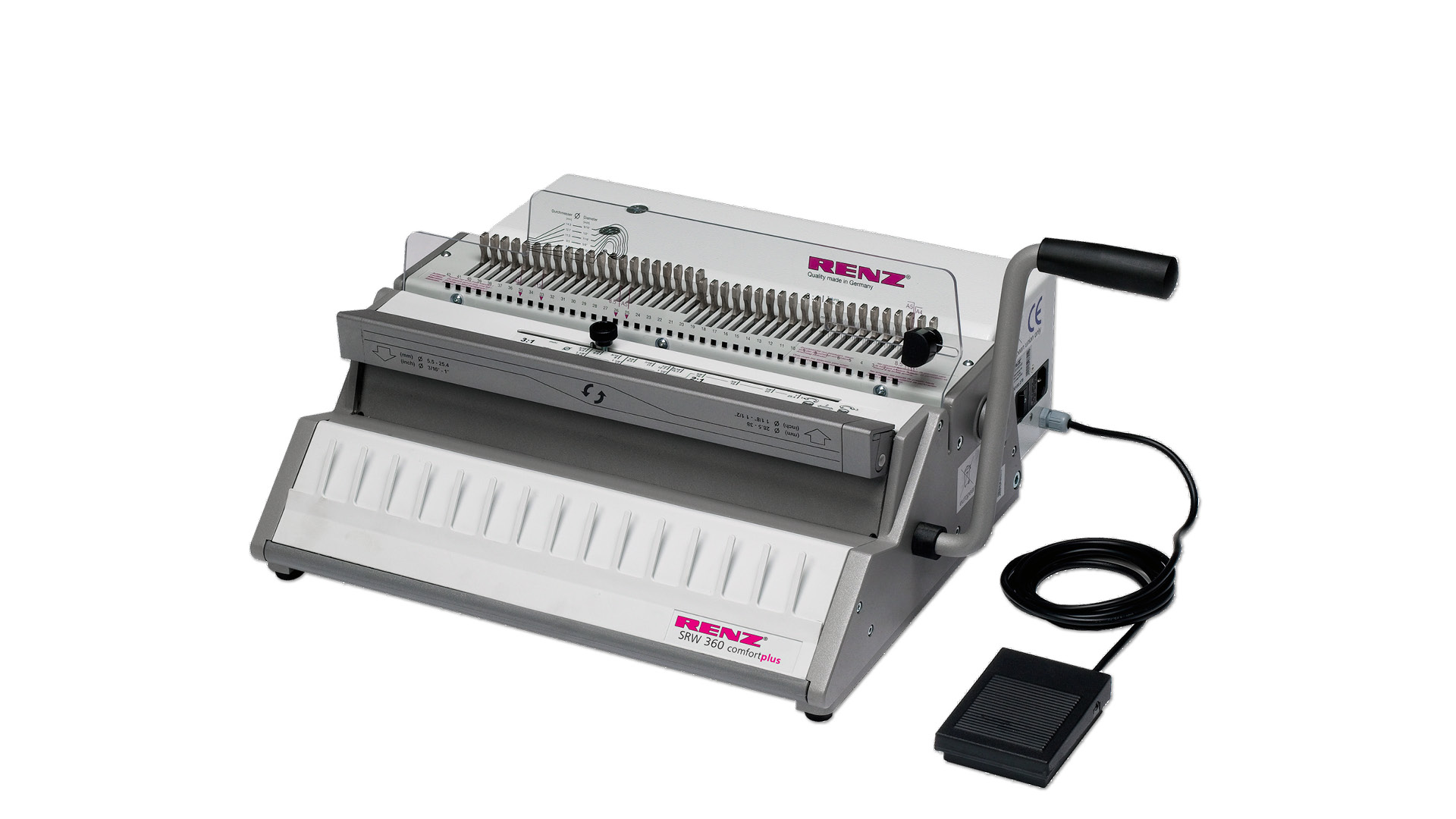

SRW 360 Comfort Plus

Convenient and precise – the electric wire comb binder for professional 3:1 bindings.

Electric 3:1 wire comb binding machine with foot switch, QSA technology and 360 mm working width – for convenient punching and binding of documents, presentations and calendars.

The RENZ SRW 360 Comfort Plus is an electric 3:1 wire comb binding machine for punching and binding with wire combs up to 360 mm working width – ideal for reports, presentations, calendars and documents in small to medium runs. Thanks to the open-ended punching and closing slot, even oversized formats like A3 can be processed by punching and closing in two passes. The machine punches up to 20 sheets per stroke effortlessly via foot switch and binds up to 135 sheets (80 gsm) manually using an ergonomic lever – ideal for productive and comfortable operation. With QSA technology, individual hardened punching pins can be quickly deactivated – ideal for flexible format changes to A5, A4 or custom sizes. The punching margin is adjustable from 2 to 4.5 mm, and the integrated measuring scale and parallel adjustment ensure accurate binding results. With its durable design and user-friendly operation, this model is a smart choice for professional environments.

Features

• Binds up to 135 sheets (80 gsm)

• Electric punching via foot switch – up to 20 sheets per stroke

• 360 mm working width – A3 supported via open punching and closing slot (punched and closed in two passes)

• 3:1 pitch (34 rings per A4)

• QSA technology: quickly deactivate individual hardened punching pins – ideal for A4, A5 and custom sizes

• Adjustable punching margin: 2–4.5 mm

• Diameter setting for accurate closure

• Parallel adjustment for consistent results

• Durable metal construction with integrated measuring scale

• Easy and ergonomic to operate – perfect for offices, schools and copy shops

Properties

Product type:
Electric punching and binding machine

Field of application:
Wire comb binding, Calendar binding

Function:
electrical punching, manual binding

Operation:
Foot pedal, Binding lever

Setup / Settings:
manuell

Format change:
0,2 min

Diameter change:
0,1 min

Working width:
360 mm

Min. format (w x l):
10 x 50 mm

Max. format (w x l):
360 x 500 mm

Pitch:
3:1

Hole pattern:
square hole

Punch pattern:
4,0 x 4,0 mm

Selectable punch pins (QSA):
yes

Adjusting margin depth:
variable margin depth

Workable diameters:
Ø 1/4″ – 5/8″ (6,9 – 16,0 mm)

Max. binding thickness (mm):
13,5 mm

Max. binding thickness (sheets, 70-80gsm):
135

Max. punching thickness:
2,2 mm

Max. punched sheets p/h:
16000

Max. bound items /h:
250

Feeding calendar hangers (optional):
Manual single feeding

Power requirement:
230V, 1PH/N/PE, 50Hz, 180W

Power requirement (alternativ):
115V, 1PH/N/PE, 60Hz, 180W

Product size (w x h x d):
560 x 180 x 430 mm

Product weight:
26,0 kg
