Renz – SRW 360 // Manual 3:1 wire comb binding machine. 360 mm working width. Binds up to 135 sheets. QSA function for quick deactivation of punching pins.

RENZ

SRW 360

Precision in every format – the professional manual 3:1 wire comb binder.

Manual 3:1 wire comb binding machine with two-handle operation, QSA technology and 360 mm working width – ideal for binding reports, presentations, documents and calendars.

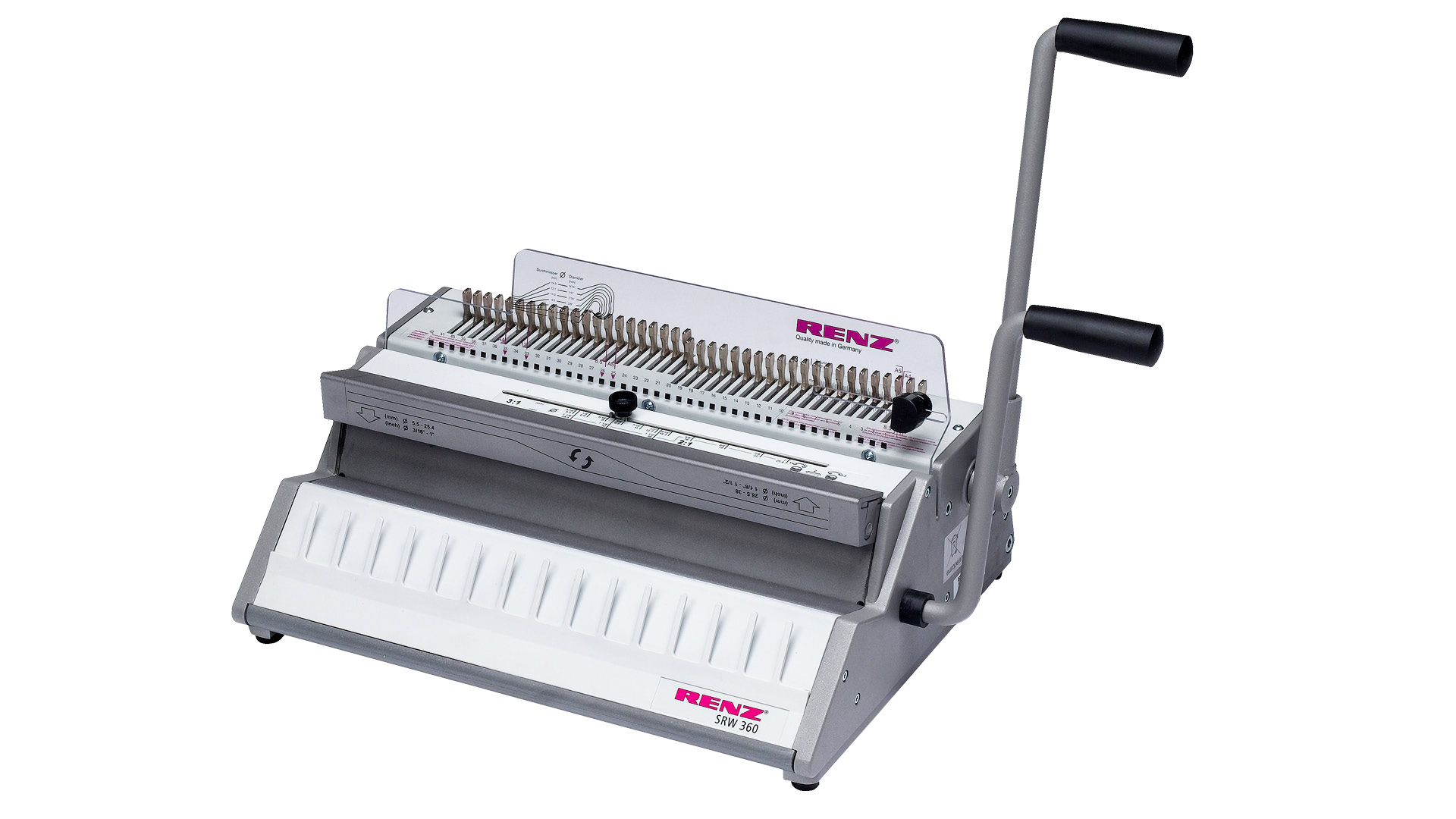

The RENZ SRW 360 is a manual 3:1 wire comb binding machine for punching and binding with wire combs up to 360 mm working width. Thanks to the open-ended punching and closing slot, oversized formats such as A3 can also be processed by punching and closing in two passes – ideal for reports, presentations, calendars and documents in small to medium runs. It punches up to 20 sheets per stroke and binds up to 135 sheets. With QSA technology, individual hardened punching pins can be quickly deactivated – ideal for flexible format changes to A5, A4 or custom sizes. The punching margin is adjustable from 2 to 4.5 mm, and the integrated measuring scale and parallel adjustment ensure accurate binding results. With a sturdy construction and optional electric upgrade, the SRW 360 is a future-proof solution for professional wire comb binding.

Features

• Binds up to 135 sheets (80 gsm)

• Punching capacity: up to 20 sheets per stroke

• 360 mm working width – A3 supported via open punching and closing slot (punched and closed in two passes)

• 3:1 pitch (34 rings per A4)

• QSA technology: quickly deactivate individual hardened punching pins – ideal for A4, A5 and custom sizes

• Adjustable punching margin: 2–4.5 mm

• Diameter setting for accurate closure

• Parallel adjustment for consistent results

• Optional electric motor upgrade (Comfort Plus)

• Durable metal construction with integrated measuring scale

Properties

Product type:
Manual punching and binding machine

Field of application:
Wire comb binding, Calendar binding

Function:
manual punching and binding

Operation:
Punching lever, Binding lever

Setup / Settings:
manuell

Format change:
0,2 min

Diameter change:
0,1 min

Working width:
360 mm

Min. format (w x l):
10 x 50 mm

Max. format (w x l):
360 x 500 mm

Pitch:
3:1

Hole pattern:
square hole

Punch pattern:
4,0 x 4,0 mm

Selectable punch pins (QSA):
yes

Adjusting margin depth:
variable margin depth

Workable diameters:
Ø 1/4″ – 5/8″ (6,9 – 16,0 mm)

Max. binding thickness (mm):
13,5 mm

Max. binding thickness (sheets, 70-80gsm):
135

Max. punching thickness:
2,2 mm

Max. punched sheets p/h:
12000

Max. bound items /h:
200

Feeding calendar hangers (optional):
Manual single feeding

Product size (w x h x d):
560 x 180 x 330 mm

Product weight:
13,0 kg
