Renz – WireGo | 3:1 // Manual 3:1 wire comb binding machine for 11″/8.5″ (A4/A5). Binds up to 135 sheets. 300 mm working width.

RENZ

Wire|Go 3:1

Reliable and robust – the solid entry-level machine for 3:1 wire comb binding.

Manual 3:1 wire comb binding machine for punching and binding with wire combs in A4/A5 – up to 135 sheets, 300 mm width and ergonomic two-handle operation.

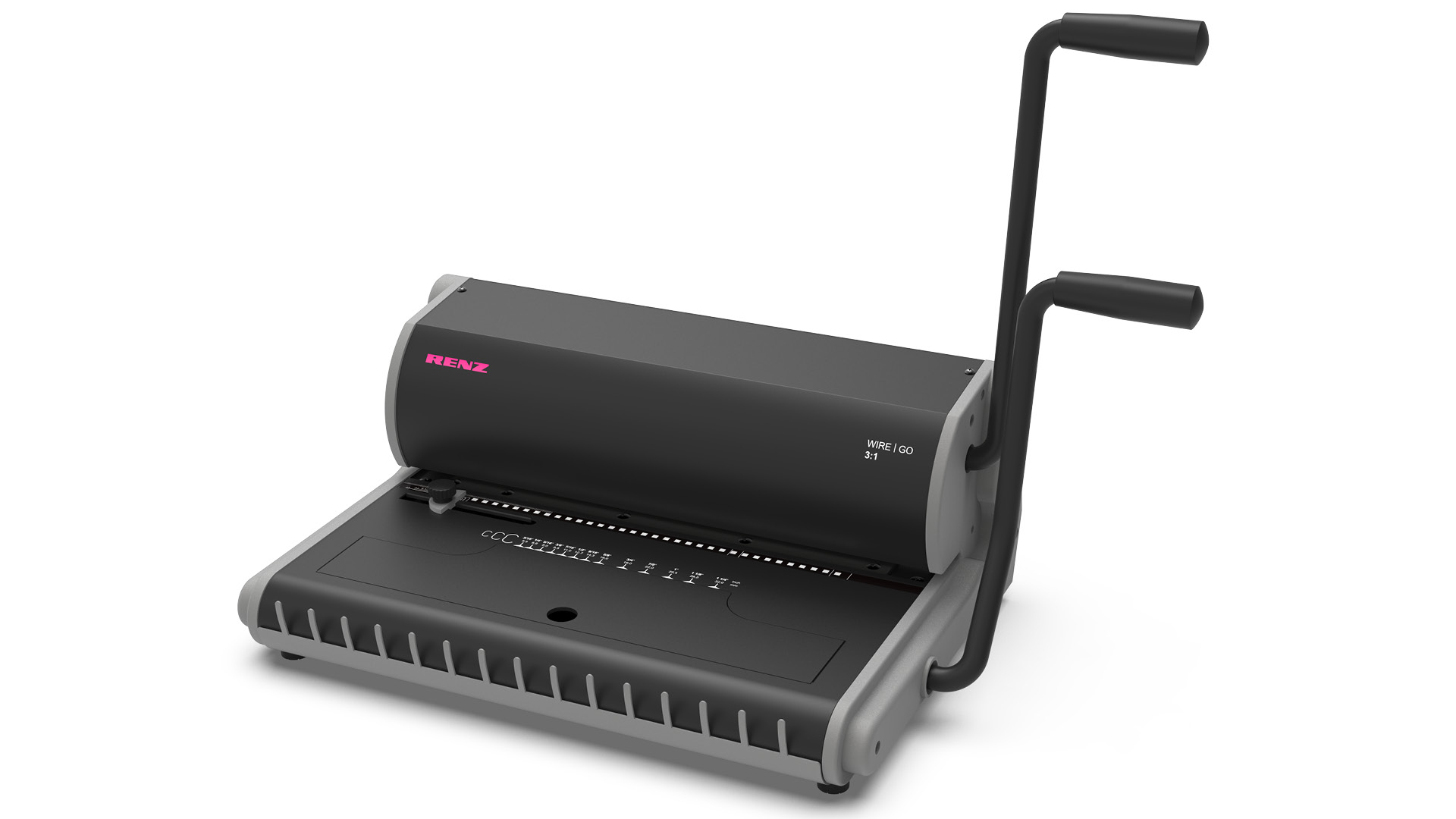

The RENZ Wire|Go 3:1 is a compact manual 3:1 wire comb binding machine for punching and binding with wire combs in A4 or A5 – ideal for use at home or in the office. With a working width of 300 mm, it binds up to 135 sheets (13.5 mm block thickness) using 3:1 pitch (34 rings per A4). The ergonomic two-handle system ensures comfortable punching and binding. Diameter setting is done via a slider, and a built-in wire size guide helps choose the correct comb. With durable metal housing, fixed punching pins, and a large waste tray, this is the reliable choice for clean, precise wire binding.

Features

• Punches up to 20 sheets per stroke

• Binds up to 135 sheets (13.5 mm)

• 3:1 pitch (34 rings per A4)

• 300 mm working width – for A4 and A5

• Ergonomic two-handle operation

• Integrated wire holder for easy binding

• Quick diameter setting via slider

• Wire size guide built into the cover

• Fixed margin and punching pins

• Large waste tray

• Durable metal construction (15 kg)

Properties

Product type:
Manual punching and binding machine

Field of application:
Wire comb binding

Function:
manual punching and binding

Operation:
Punching lever, Binding lever

Setup / Settings:
manuell

Format change:
0,1 min

Diameter change:
0,1 min

Working width:
300 mm

Min. format (w x l):
10 x 50 mm

Max. format (w x l):
300 x 500 mm

Pitch:
3:1

Hole pattern:
square hole

Punch pattern:
4,0 x 4,0 mm

Selectable punch pins (QSA):
no

Adjusting margin depth:
fixed margin depth

Workable diameters:
Ø 1/4″ – 5/8″ (6,9 – 16,0 mm)

Max. binding thickness (mm):
13,5 mm

Max. binding thickness (sheets, 70-80gsm):
135

Max. punching thickness:
2,0 mm

Max. punched sheets p/h:
12000

Max. bound items /h:
180

Product size (w x h x d):
456 x 190 x 333 mm

Product weight:
15,4 kg
