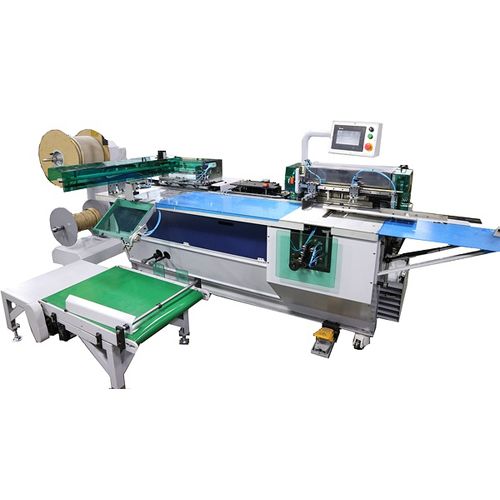

WB54PB Automatic Wire-O Punch and Bind System

The WB54PB Wire-O Punch and Bind is a binding system that will both punch and bind your document automatically. Offering production speeds of up to 1000 documents per hour. The WB54PB is an affordable investment that will bind a wide variety of applications including calendars, note pads, books, diaries and more in one pass for a truly automated in-line Wire-O punch and bind solution.

The WB54PB Wire-O Punch and Bind System will punch and bind books up to 15 mm thick, it can break apart a book in up to 6 lifts. It’s a game changer for Wire-O binding production, there is nothing like it in the industry that has these production capabilities, at this price point. Turn your Wire-O binding operation from a bottleneck to an efficient operation that increases your revenue stream.

The system has 4 operational steps that run simultaneously:

– The operator loads the book into the WB54PB, which automatically punches up to 6 lifts of paper, allowing for a punching capacity of up to 15 mm documents.

– The book is automatically transported to the alignment station, where the punch holes are perfectly positioned to accept the wire.

– The document is transported to the binding station where the wire comes off the spools, is cut to length and inserted into the document and closing tools bind the book.

– A transport arm moves the book out of the binding station where the book is moved onto a conveyor packaging station.

Featuring:

* Reliable and efficient operation

* Modern design using the latest engineering

* User friendly operation with touch screen controls

* Produces constant, high-quality products

* An optional hanger feeder is available

Specifications:

• Punching & Binding Capacity: Up to 1000 books per hour

• Punching Die: 3:1 / 2:1 pitch / 4 x 4.5mm rectangular hole

• Book Thickness: Up to 9/16″ (15mm) in 6 lifts

• Wire-O Sizes: 1/4″ up to 9/16″

• Compatible Supplies and Accessories : Wire Closing Tool for WB54PB

• Max Book Size: 20.4″ B.E. x 27.5″ (520 x 700mm)

• Min. Book Size: 4.7″ B.E. x 4.7″ (120 x 120mm)

• Dimensions: 9’7″ L x 3’2″ W x 4’7″ H (2950 x 960 x 1440)

• Weight: 3196 lbs. (1450kg)

• Power: 220V, 60HZ, 3 Phase, 3950w

• Air Consumption: 2 CFM @ 75 PSI
